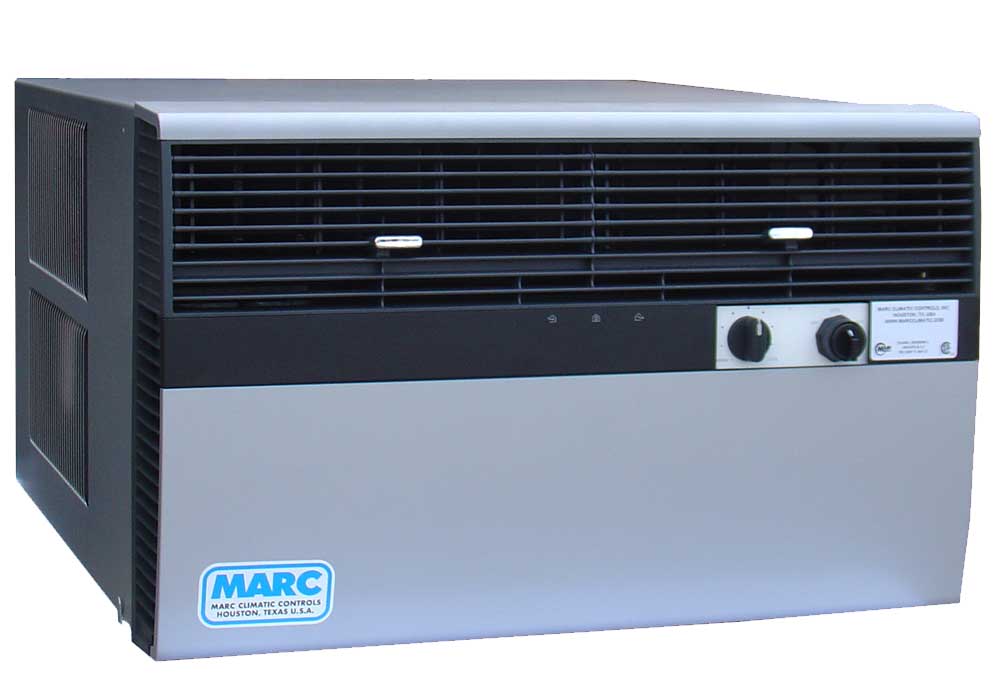

R Series

*Certified by CSA (bearing the CSA mark) for compliance to applicable codes and standards
100% re-circulated indoor air
Self-contained with integral controls
Spark resistant construction
EPA approved, HFC type refrigerants
Tool-less access to return air filter
Fully insulated supply plenum for quite operation
Protective coatings for prolonged life of cabinet and chassis

Nominal cooling up to 3 tons
Heat pump operation [WARNING: heat pump systems are not suited for heating operation in ambient temperatures lower than 45°F (7°C)]
Steam heating coil with connections
General purpose electric heat for purged cabins
Single phase operation in 60 or 50 Hz applications
Available for operation in various non-hazardous and hazardous rated locations
Type 304 or 316 stainless steel cabinet and chassis for corrosion protection
Corrosion resistant coatings for refrigerant coils and tubing (proven to withstand 10,000 hours of salt spray test)
Protective component coatings for prolonged life in corrosive environments
Auto-changeover heat/cool thermostat for unattended, year-round comfort
Low volume fresh air intake (for barometric relief only)

Storage sheds, analyzer shelters
Guard shacks, operator cabins, portable offices, living quarters, and other small, manned enclosures & buildings

*Certification may not apply to all configurations. Please contact our technical sales department for more information.

Class	Hazardous Material in Surrounding Atmosphere
Class I	Hazardous because flammable gases or vapors are present in the air in quantities sufficient to produce explosive or ignitable mixtures.
Class II	Hazardous because combustible or conductive dusts are present.
Class III	Hazardous because ignitable fibers or flying’s are present, but not likely to be in suspension in sufficient quantities to produce ignitable mixtures. Typical wood chips, cotton, flax and nylon. Group classifications are not applied to this class.

Division	Presence of Hazardous Material
Division 1	The substance referred to by class is present during normal conditions.
Division 2	The substance referred to by class is present only in abnormal conditions, such as a container failure or system breakdown.

Group	Hazardous Material in Surrounding Atmosphere
Group A	Hydrogen, fuel and combustible process gases containing more than 30% hydrogen by volume or gases of equivalent hazard such as butadiene, ethylene, oxide, propylene oxide and acrolein.
Group B	Hydrogen, fuel and combustible process gases containing more than 30% hydrogen by volume or gases of equivalent hazard such as butadiene, ethylene, oxide, propylene oxide and acrolein.
Group C	Carbon monoxide, ether, hydrogen sulfide, morphline, cyclopropane, ethyl and ethylene or gases of equivalent hazard.
Group D	Gasoline, acetone, ammonia, benzene, butane, cyclopropane, ethanol, hexane, methanol, methane, vinyl chloride, natural gas, naphtha, propane or gases of equivalent hazard.
Group E	Combustible metal dusts, including aluminum, magnesium and their commercial alloys or other combustible dusts whose particle size, abrasiveness and conductivity present similar hazards in connection with electrical equipment.
Group F	Carbonaceous dusts, carbon black, coal black, charcoal, coal or coke dusts that have more than 8% total entrapped volatiles or dusts that have been sensitized by other material so they present an explosion hazard.
Group G	Flour dust, grain dust, flour, starch, sugar, wood, plastic and chemicals.
