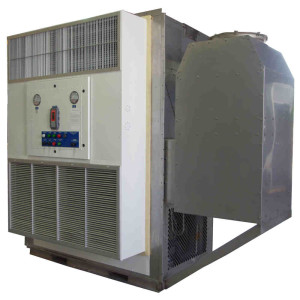

WMP Series

Factory certified for compliance to applicable codes and standards
Spark resistant fan and blower construction
EPA approved HFC type refrigerants
Single cut-out requirement for building wall
Supply and return air registers for ductless air handling
Through-the-wall controls section for indoor access to operating controls
Built-in automatic controls and equipment to manage safe air and maintain positive pressure and purge air flow to meet NFPA 496, Type X, Y, or Z requirements for the space
Protective coatings for prolonged life of cabinet and chassis

Total nominal cooling from 7.5 to 25 tons
Type 304 or 316 stainless steel cabinet and chassis for corrosion protection
Electric heat (limited by temperature code and system size)
Three phase operation in 60 or 50 Hz applications
Configurable for operation in various non-hazardous and hazardous rated locations
Corrosion resistant coatings for refrigerant coils and tubing (proven to withstand 10,000 hours of salt spray test)
Protective component coatings for prolonged life in corrosive environments
Totally Enclosed Fan-Cooled (TEFC) motors
Advanced chemical filtration packages
Low/High ambient packages for operation in extreme environments

Environmental control
Control rooms living quarters, plant office buildings, break rooms, and other manned applications.
MCC, RIE, DCS, LER, power, and switchgear buildings

Class	Hazardous Material in Surrounding Atmosphere
Class I	Hazardous because flammable gases or vapors are present in the air in quantities sufficient to produce explosive or ignitable mixtures.
Class II	Hazardous because combustible or conductive dusts are present.
Class III	Hazardous because ignitable fibers or flying’s are present, but not likely to be in suspension in sufficient quantities to produce ignitable mixtures. Typical wood chips, cotton, flax and nylon. Group classifications are not applied to this class.

Division	Presence of Hazardous Material
Division 1	The substance referred to by class is present during normal conditions.
Division 2	The substance referred to by class is present only in abnormal conditions, such as a container failure or system breakdown.

Group	Hazardous Material in Surrounding Atmosphere
Group A	Hydrogen, fuel and combustible process gases containing more than 30% hydrogen by volume or gases of equivalent hazard such as butadiene, ethylene, oxide, propylene oxide and acrolein.
Group B	Hydrogen, fuel and combustible process gases containing more than 30% hydrogen by volume or gases of equivalent hazard such as butadiene, ethylene, oxide, propylene oxide and acrolein.
Group C	Carbon monoxide, ether, hydrogen sulfide, morphline, cyclopropane, ethyl and ethylene or gases of equivalent hazard.
Group D	Gasoline, acetone, ammonia, benzene, butane, cyclopropane, ethanol, hexane, methanol, methane, vinyl chloride, natural gas, naphtha, propane or gases of equivalent hazard.
Group E	Combustible metal dusts, including aluminum, magnesium and their commercial alloys or other combustible dusts whose particle size, abrasiveness and conductivity present similar hazards in connection with electrical equipment.
Group F	Carbonaceous dusts, carbon black, coal black, charcoal, coal or coke dusts that have more than 8% total entrapped volatiles or dusts that have been sensitized by other material so they present an explosion hazard.
Group G	Flour dust, grain dust, flour, starch, sugar, wood, plastic and chemicals.
